1826 MK7 Reflow Oven System

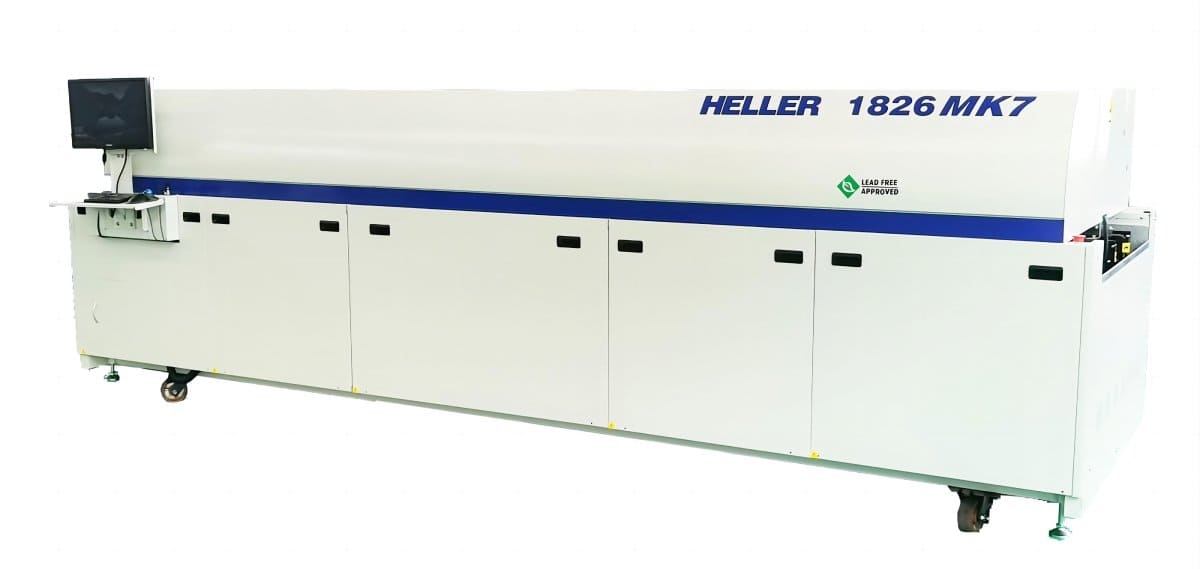

1826 MK7 Reflow Oven photo

The 1826 MK7 is a high volume reflow oven system with 8 heated zones and belt speeds up to 1.88m/min. The 1826 MK7 offers the lowest delta T’s, reduced nitrogen and electrical consumption and advanced flux management options. The 12” wide heater modules offer profile compatibility with competitor systems.

  • Built-in Thermal Monitoring
  • Nitrogen Capable to < 100 ppm
  • Energy Management System
  • Virtually No Maintenance
  • 12” Wide Heater Modules
Oven Length 465 cm (183″)
Process Gas Options Air, Nitrogen
Heated Zones Convection: 10 Top / 10 Bottom
Heated Length 360 cm (142”)
Cool Zones 2 Top (Bottom Option)
Max Working Temperature Standard: 350°C (Option: 400°C)
Maximum PCB Width 55.9cm (22”)
Cleanroom Option Down to Class 1000
